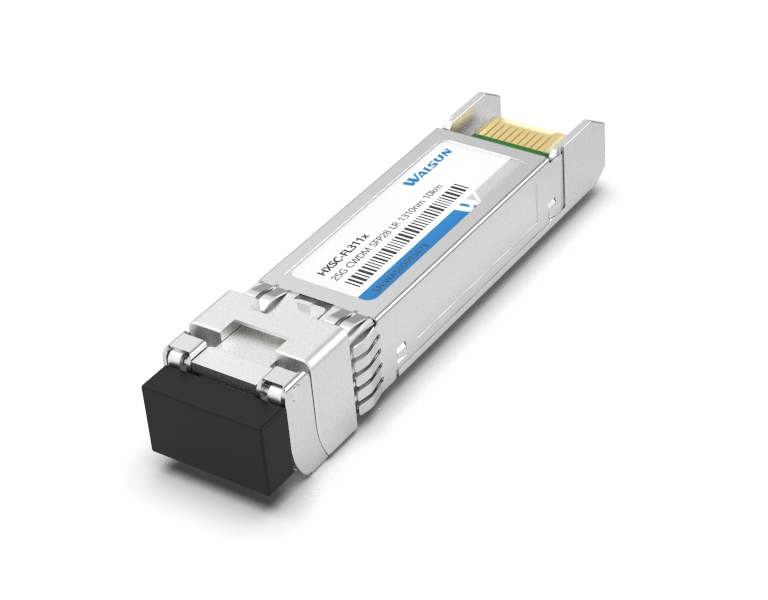

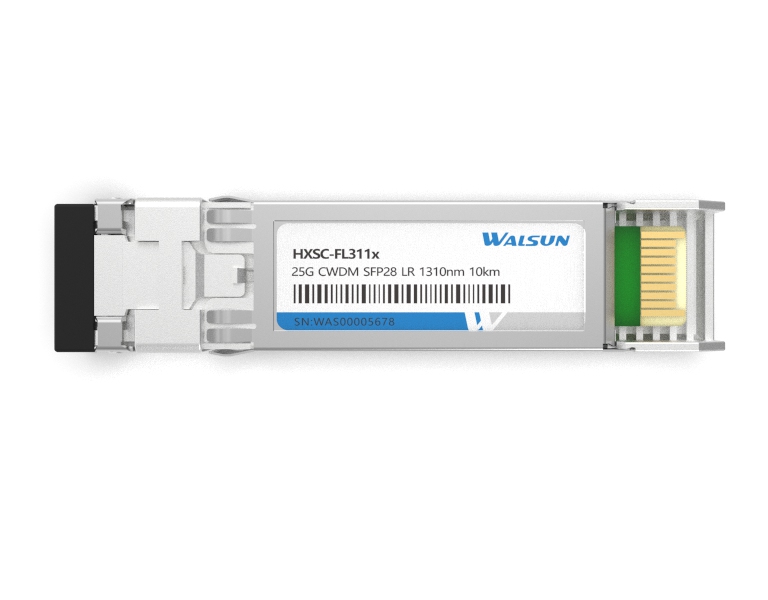

CWDM

Product Features

l  Up to 25.78Gb/s data links

l  CWDM DFB laser and PIN receiver

l  Up to 10km on 9/125um SMF

l  Hot-pluggable SFP footprint

l  Digital diagnostic capabilities

l  Class 1 laser safety certified

l  Cost effective SFP28 solution, enables higher port densities and

greater bandwidth

l  RoHS-10 compliant and lead-free

l  Single +3.3V power supply

l  2-wire interface for management specifications compliant with SFF-8472

digital diagnostic monitoring interface for optical transceivers

l  All-metal housing for superior EMI performance

l  Case operating temperature : 0°C to +70°C/ -40°C to +85°C




分享+
订购信息
产品型号传输速率
(Gb/s)
波长
(nm)
距离
(Km)
激光器发射光功率
(dBm)
接收器接收灵敏度
(dBm)
温度
(℃)
规格书
CWDM LR25 1270~1450 10 DML -7.0~2.0 PIN < -11.5 0~70
CWDM ER25 1270~1370 40 DML -3.0~6.0 APD < -14 0~70
