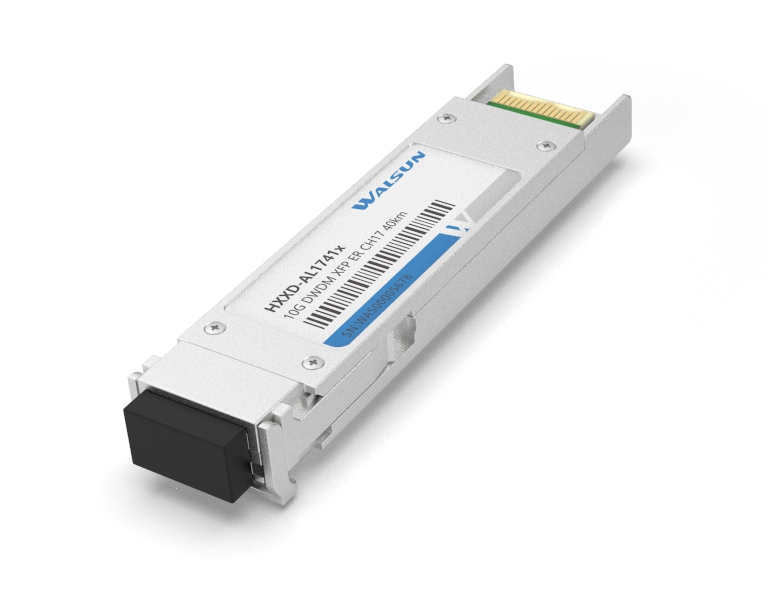

High Speed

DWDM

Product Features

l  Up to 11.3Gb/s data links

l  DWDM EML transmitter and APD receiver

l  100 GHz ITU channel spacing with integrated wavelength locker

l  Up to 40/80/100/120km on 9/125µm SMF

l  Hot-pluggable SFP+ footprint

l  Duplex LC/UPC type pluggable optical interface

l  RoHS compliant and lead-free

l  Support Digital Diagnostic interface

l  Single +3.3V power supply

l  Compliant with SFF+MSA and SFF-8472

l  Metal enclosure, for lower EMI

l  Meet ESD requirements, resist 8KV direct contact voltage

l  Case operating temperature : -40°C to +85°C


分享+
订购信息
产品型号传输速率
(Gb/s)
波长
(nm)
距离
(Km)
激光器发射光功率
(dBm)
接收器接收灵敏度
(dBm)
温度
(℃)
规格书
DWDM ER10 CH17-CH61 40 EML -1.0~3.0 PIN < -15.8 -40~85
DWDM ZR10 CH17-CH61 80 EML 0~5.0 APD < -23.0 -40~85
DWDM ZR+10 CH17-CH61 100 EML 1.0~5.0 APD < -25.0 -40~85
